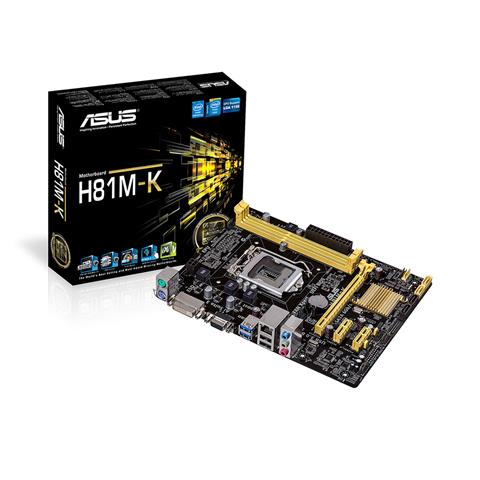

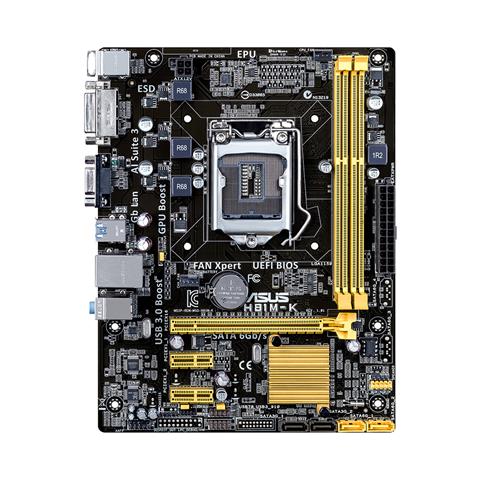

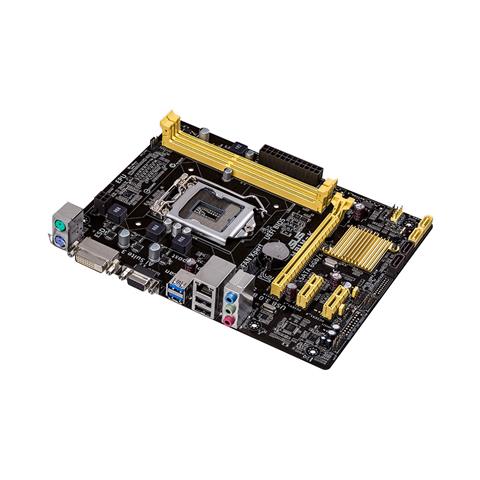

ASUS H81M-K

Tech Specs

Model
H81M-K

CPU
Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0

• The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
• Refer to [www.asus.com] for CPU support list.

Chipset
Intel® H81

Memory
2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

• Hyper DIMM support is subject to the physical characteristics of individual CPUs.
• Refer to [www.asus.com] for the Memory QVL (Qualified Vendors Lists).
• Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 MHz.

Graphic
Integrated Graphics Processor
Multi-VGA output support: DVI/RGB ports

• Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
• Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB (for iGPU exclusively)
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Expansion Slots
1 x PCIe x16
2 x PCIe 2.0 x1

Storage
Intel® H81 chipset:
2 x SATA 6Gb/s port(s), yellow,
2 x SATA 3Gb/s port(s), dark brown,
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1

LAN
Realtek® 8111G, 1 x Gigabit LAN Controller(s)

Audio
Realtek ALC887/897 8-Channel High Definition Audio CODEC *2

• Supports: Front Panel Jack-retasking, up to 24-Bit/192kHz playback

USB Ports
Intel® H81 chipset:
2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)

Special Features
ASUS EPU:

• EPU

ASUS Exclusive Features:

• GPU Boost
• AI Suite 3
• Ai Charger
• Anti-Surge
• ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
• Network iControl
• USB 3.0 Boost
• Disk Unlocker

ASUS Quiet Thermal Solution:

• Stylish Fanless Design Heat-sink solution
• ASUS Fan Xpert

ASUS EZ DIY:

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 2

ASUS Q-Design:

• ASUS Q-Slot

Operating System Support
Windows® 8
Windows® 7

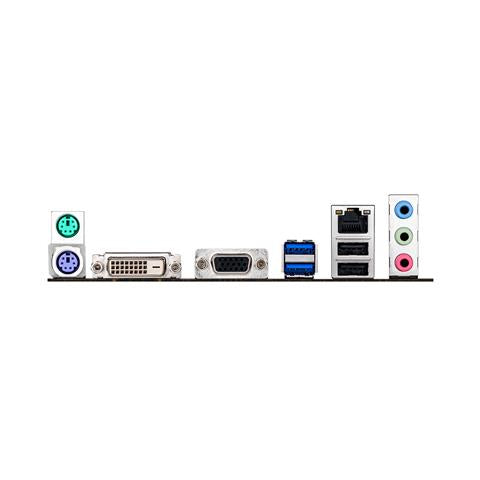

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 (blue)
2 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4-pin)
1 x Chassis Fan connector(s) (1 x 4-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)

Accessories
User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)

BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WfM 2.0, DMI 2.0, WOL by PME, PXE

Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-Virus Software (OEM Version)

Form Factor
uATX Form Factor
8.9 inch x 6.9 inch (22.6 cm x 17.5 cm)
