QNAP HS-453DX-8G
如本產品在下單及付款後因缺貨或其他原因未能成功出貨，BuyBuy.hk的客服將會聯絡相關顧客進行退款安排
保養將由代理或原廠提供
The 2018 Computex d&i Design Award-winning HS-453DX features a stylish minimalist appearance while providing maximum multimedia performance. Powered by an Intel® Celeron® J4115 quad-core processor with HDMI™ 2.0 (4K @60Hz) output, the HS-453DX allows you to directly enjoy high-quality videos on a 4K HDTV, and fits seamlessly within an existing home theater setup. With a fanless design, the HS-453DX remains quiet under operation, allowing you to fully enjoy a multimedia experience without any distracting noise. The HS-453DX is also designed for high-speed networking, providing both a 10GbE NBASE-T port and hybrid HDD + SSD structure (two SATA 3.5-inch drive bays and two M.2 2280 SATA SSD slots) to empower fast file transfers and the smoothest video streaming experience.
| CPU | Intel® Celeron® J4115 4-core/4-thread processor, burst up to 2.5 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® HD Graphics 600 |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | |
| System Memory | 8 GB SODIMM DDR4 (2 x 4 GB) |
| Maximum Memory | 8 GB (2 x 4 GB) |
| Memory Slot | 2 x SODIMM DDR4
For dual-DIMM configuration, you must use a pair of identical RAM modules.
|
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 2 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| M.2 Slot | 2 x M.2 2280 SATA 6Gb/s slots |
| SSD Cache Acceleration Support | |
| Gigabit Ethernet Port (RJ45) | 1 |
| 10 Gigabit Ethernet Port | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| USB 2.0 port | 2 |
| USB 3.2 Gen 1 port | 3 (1 x USB-C, 2 x USB-A) |

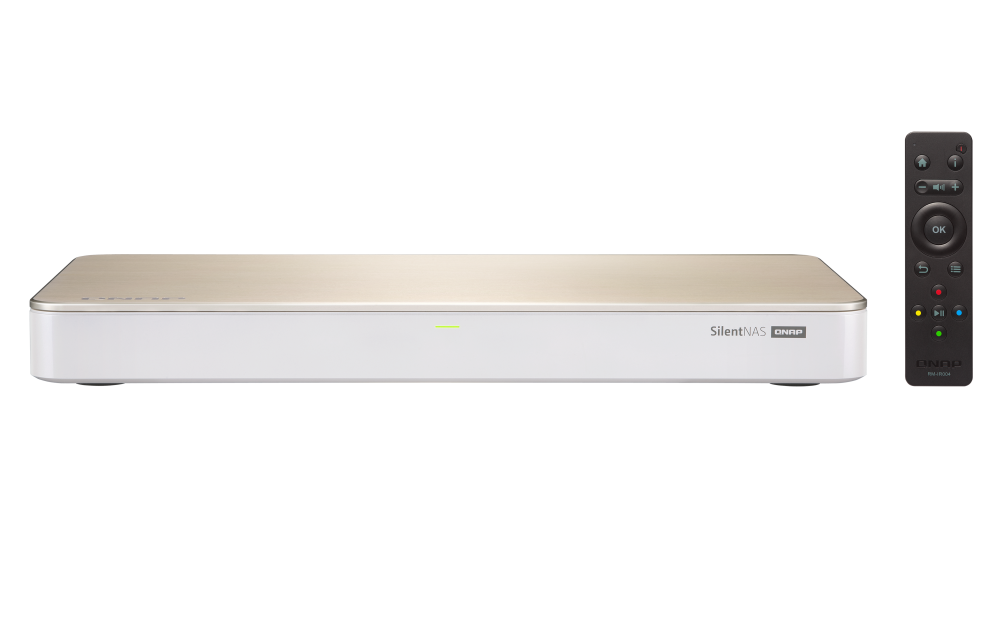

| IR Sensor | (RM-IR004) |
| HDMI™ Output | 2, HDMI™ 2.0 (up to resolution 3840 x 2160 @ 60Hz) + HDMI™ 1.4b (up to 3840 x 2160 @ 30Hz) |
| Audio Input | - (No longer available on units manufactured on or after 2021/1/1) |
| Audio Output | - (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1) |
| Form Factor | Set-top design |
| LED Indicators | Power/Status, HDD1-2 |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 41 × 404 × 220 mm |
| Weight (Net) | 3.89 kg |
| Weight (Gross) | 3.89 kg |
| Operating Temperature | 0 - 35 °C (32°F - 95°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | External Power Adapter, 90W, 100-240V |
| Power Consumption: HDD Sleep Mode | 13.55 W |
| Power Consumption: Operating Mode, Typical | 22.38 W
Tested with drives fully populated.
|
| System Warning | Buzzer |
| Standard Warranty | 2 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
*以上產品描述僅供參考，產品資料均以產品官網為準。
